 Heliformed Suspensio n clamp Use Description---

 Click here for Price inquiry, Contact Supplier Artisan Industry

Welcome add our WhatsApp for Factory Online Video Tour, +86 150 5061 5346

Heliformed Suspensio n clamp is intended for use on aluminum based conductors, Aluminum Coated Steel Conductor and galvanized steel strands.

It is designed to reduce the static and dynamic stresses at the support point,so that the conductor or strand is protected against the effects of oscillations.

It also protects the conductor in the support against impulse and power flash-over.

Heliformed Suspensio n clamp Application

1.for the reduction of static stresses at conductor suspension points and to provide greater protection to conductors against the dynamic stresses of Aeolian vibration.

2.To give conductors protection against impulse and flash-over.

3.To protect conductors against abrasion,bending and compression stresses.The protection offered by heliformed suspension clamp fittings is superior to armor-clamp combinations.

4.To install line angles up to and including 30 and through use of double units,up to 60 .

5.For proper performance and personal safety be sure to select the proper size with preformed Armor Rods and clamps according the conductors size before application.

6.Dead ends are precision devices.To insure proper performance,they should be stored in cartons under cover and handled carefully.

Heliformed Suspensio n clamp Safety Considerations

1.This product is intended for a single(one-time)use and for the specified application.

2.This product is intended for use by trained craftspeople only.This product sh ould not be used by anyone who is not familiar with and trained in the use of it.

3.When working in the area of energized lines with this product,extra care should be taken to prevent accidental electrical contact.

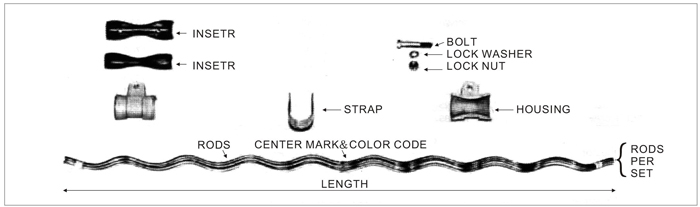

Bolt,Washer,Lock Nut:Galvanized Steel.

Strap: Galvanized Steel for conductor dia.Range 6.91-12.70mm High-Strength Aluminum Alloy for conductor dia.Range 12.24-56.72mm.

Insert: An elastomer specifical ly formulated for resistance to ozone attack,weathering,extreme high and low temperature variations,and compress ion set.Aluminum alloy reinforcement is molded into the elastomer insert.

Housing: Galvanized Steel Stamping for cable dia.Range 6.91-12.70mm

High-Strength Aluminum Alloy Casting for conductor dia.range 12.24-56.72mm.

Rods: Aluminum Clad Steel for ACSR diameter Range 7.72-12.23mm Aluminum Alloy for ACSR diameter

Range 6.91-12.70mm.Aluminum Clad Steel for Aluminum Coated Steel Conductor diameter Range 6.91-12.70mm

Galvanized Steel for Galvanized Steel Conductor diameter Range 6.91-12.70mm Standard Armor Rods have dimensions which are different from Rods for suspension clamp and cannot be substituted.
